尺寸支持 250 毫米倍數設計
完美平整度
刷新率 7680Hz
雙重備份
性能
厚度 40mm
頂部快速鎖

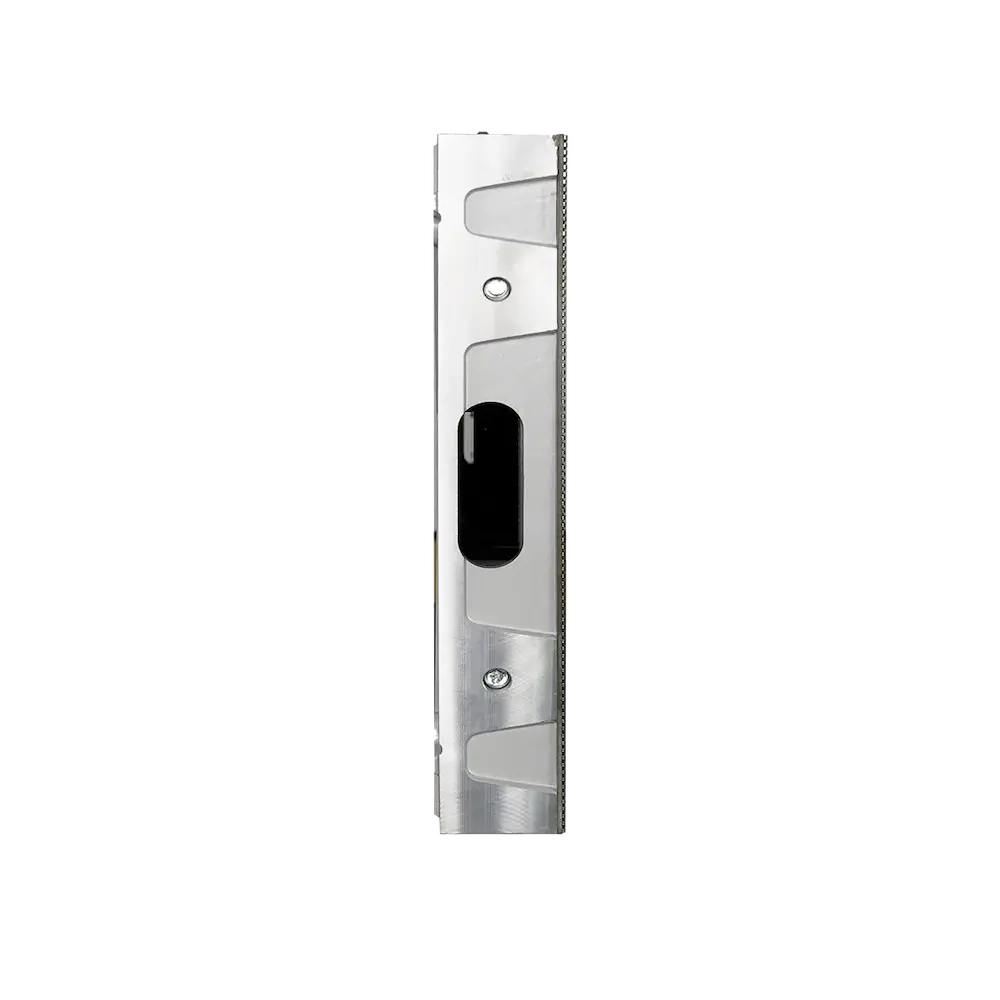

側邊把手
支持全前維護或全後維護，
前維護可直接安裝
於牆面
前維護
無線 連接模組與機櫃間，支持前維護及無線安裝
雙 接收卡備份，雙電源備份（可選），4個網口輸入與輸出，傳輸效果更穩定
接收卡備份
4個網口
低刷新率
高刷新率
低灰階
高灰階
嵌入式安裝
平面掛牆安裝
| Item | Indoor | ||||||
|---|---|---|---|---|---|---|---|
| Pixel Pitch | 1.953 | 2.604 | 2.976 | 3.91 | 4.81 | ||
| LED lamp | SMD1515 | SMD2020 | SMD2020 | SMD2020 | SMD2020 | ||
| Density(dots/m2) | 262144 | 147456 | 112896 | 65536 | 43264 | ||
| Brightness | ≤800nits | ≤1000nits | ≤1000nits | ≤1000nits | ≤1000nits | ||
| IP rating | IP31 | IP31 | IP31 | IP31 | IP31 | ||

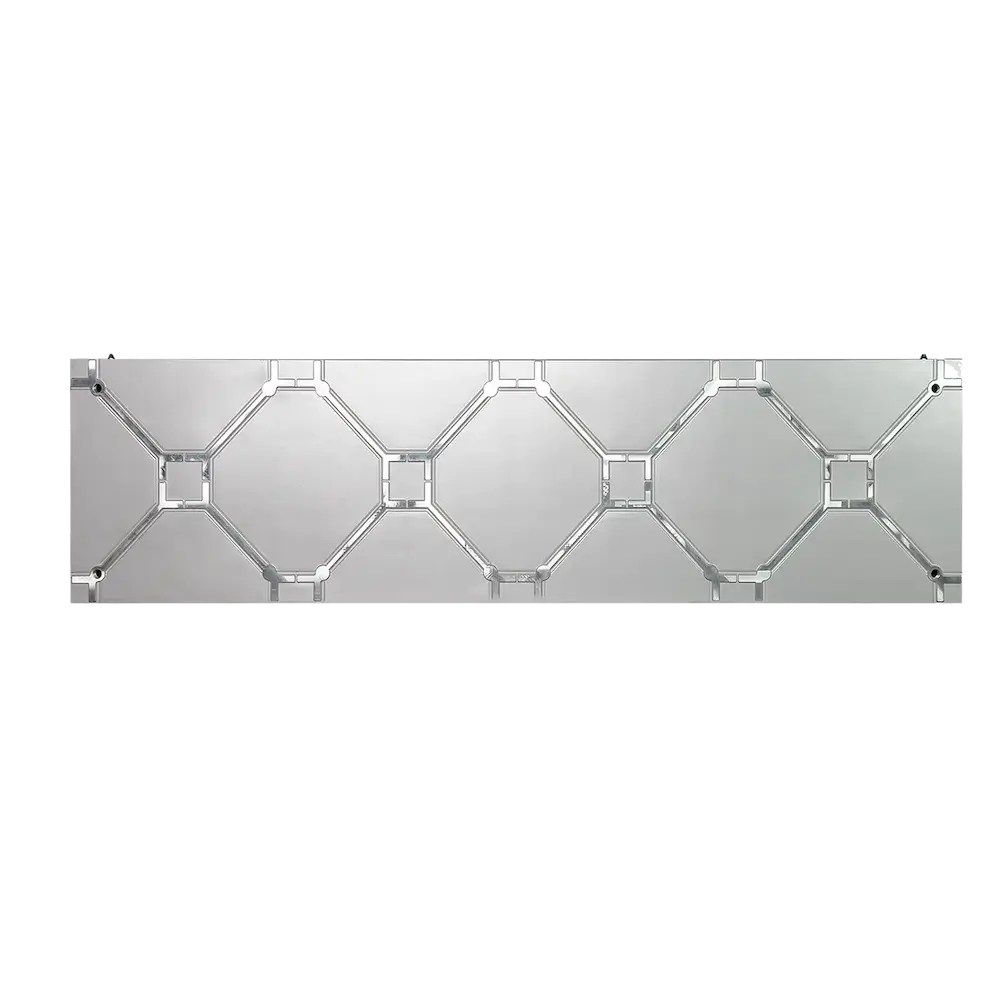

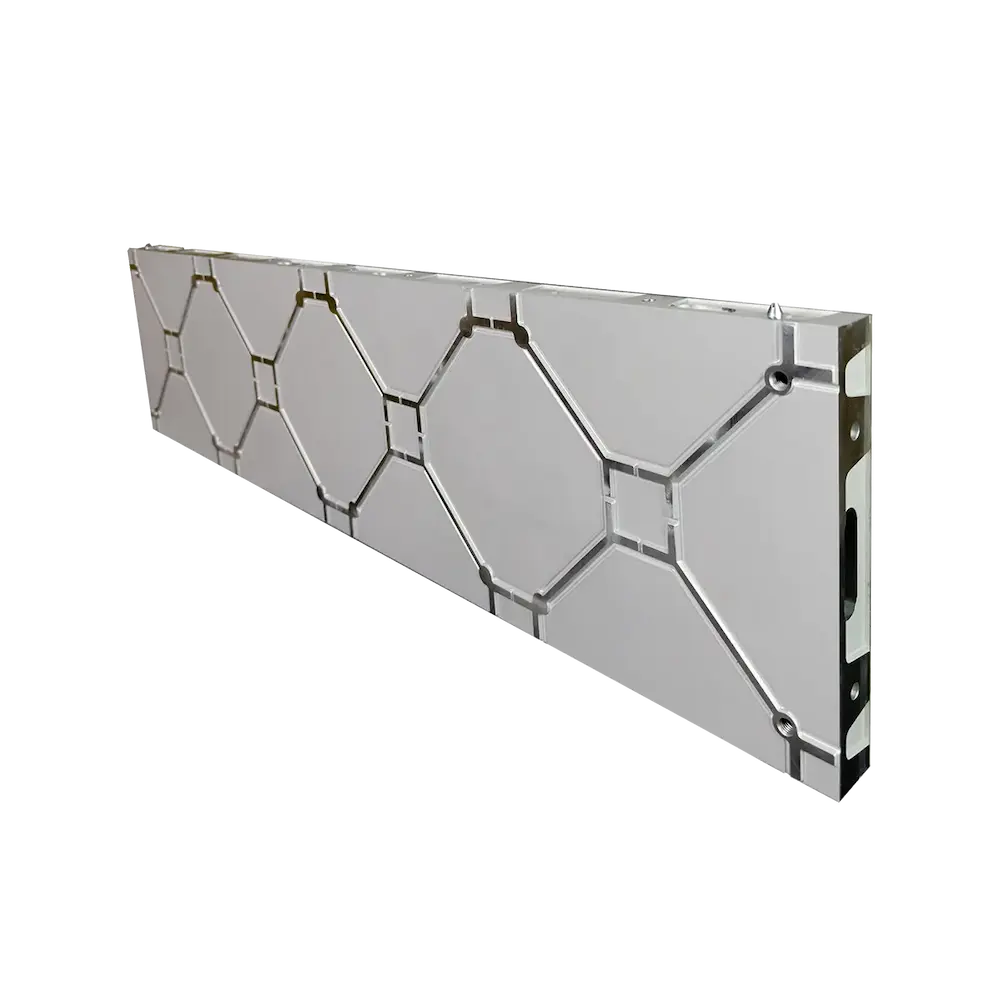

| Cabinet Materiel | Die-casting Aluminum | ||||||
| Scan | 32scan | 32scan | 21scan | 16scan | 13scan | ||
| Module weight | 0.25kg | 0.25kg | 0.25kg | 0.25kg | 0.25kg | ||
| Cabinet Weight | 6.5kg | 6.5kg | 6.5kg | 6.5kg | 6.5kg | ||
| Module size(mm) | 250*250 | 250*250 | 250*250 | 250*500 | 250*500 | ||
| Cabinet size(mm) | 1000*250*85 | 1000*250*85 | 1000*250*85 | 1000*250*85 | 1000*250*85 | ||
| Module pixel(dots) | 128*128 | 96*96 | 84*84 | 64*64 | 52*52 | ||
| Cabinet pixel(dots) | 512*128 | 384*96 | 336*84 | 256*64 | 208*52 | ||
| Max Power | 630w/sqm | 630w/sqm | 620w/sqm | 620w/sqm | 610w/sqm | ||
| Average Power | 230w/sqm | 230w/sqm | 230w/sqm | 230w/sqm | 230w/sqm | ||
| Viewing Angle | Horizontal 140(+70/-70) deg Vertical 140(+70/-70)deg | ||||||
| Control way | synchronous/asynchronous | ||||||
| Gray Scale | 16bit | ||||||
| Operating system | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI | ||||||
| Work humidity | 10% ~ 90% | ||||||
| Work temperature | ﹣20 ~﹢65℃ | ||||||
LED Module |
|
| Pixel Pitch | P1.953, 2.604, 2.976, 3.91, 4.81 |
|---|---|
| LED lamp | SMD1515/2020 |
| Brightness | ≤1000nits 800nits(P1.953) |
| Module pixel | 128*128/96*96/84*84/64*64/52*52dots |
| Cabinet pixel | 512*128/384*96/336*84/256*64/208*52dots |
Appearance |
|
| Module size | 250*250mm 250*500mm(P3.91 4.81) |
| Cabinet size | 1000*250*85mm |
| Module weight | 0.25kg |
| Cabinet Weight | 6.5kg |
Working Environment |
|
| Work humidity | 10％ ～ 90％ |
| Work temperature | ﹣20 ～﹢65℃ |
System parameter |
|
| Operating system | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI |
| Gray scale | 16bit |
Power |
|
| Max Power | 630w/sqm(P1.953,2.604) 620w/sqm(P2.976,3.91) 610w/sqm(P4.81) |
| Average Power | 230w/sqm |
Waterproof grade |
|
| IP rating | IP31 |
Control system |
|
| Control way | Synchronous/Asynchronous |
| Viewing Angle | H140(+70/-70) deg V140(+70/-70)deg |
| Scan | 32scan/21scan/16scan/13scan |
Material density |
|
| Density | 262144/147456/112896/65536/43264(dots/m2) |
| Cabinet Materiel | Die-casting Aluminum |
